Air Release Valve

● High Flow Capacity: Optimized internal design enables rapid venting of large air volumes up to 360 m³/h.

● Wide Pressure Range: Performs reliably from 0.3 to 15 bar, suitable for both drip and sprinkler systems.

● Automatic Air Management: Efficiently releases trapped air and prevents vacuum formation during system start-up and shutdown.

● Durable Construction: Made from UV-resistant PP plastic to ensure corrosion resistance and long service life.

● Universal Connection: Available with BSP or NPT male threads for easy integration with global irrigation standards.

● Compact Design: Lightweight and easy to install at pipeline high points, filter outlets, or near control valves.

product details

PRODUCT DESCRIPTION

RAIN LING Air Release Valves Series ensures efficient and stable water flow by automatically managing air within irrigation pipelines.

Trapped air or vacuum pockets can cause uneven pressure, reduce water delivery, and damage system components. These valves provide reliable air release and vacuum protection, maintaining consistent hydraulic performance in all operating conditions.

Constructed from reinforced PP plastic, the RL-VP Series offers superior UV resistance, excellent mechanical strength, and a long service life.

Its precision-engineered structure supports smooth operation under both high and low pressures, making it ideal for residential, commercial, and agricultural irrigation systems.

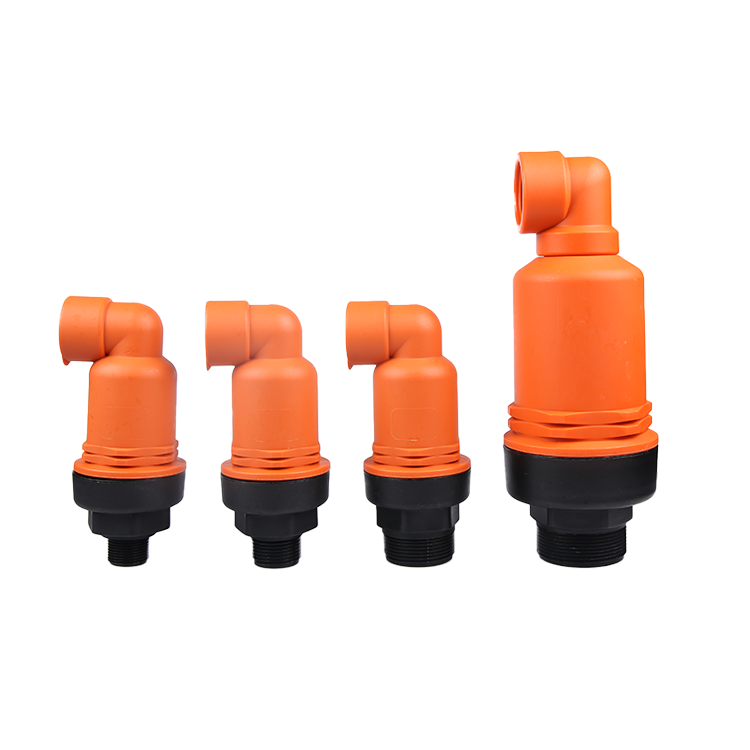

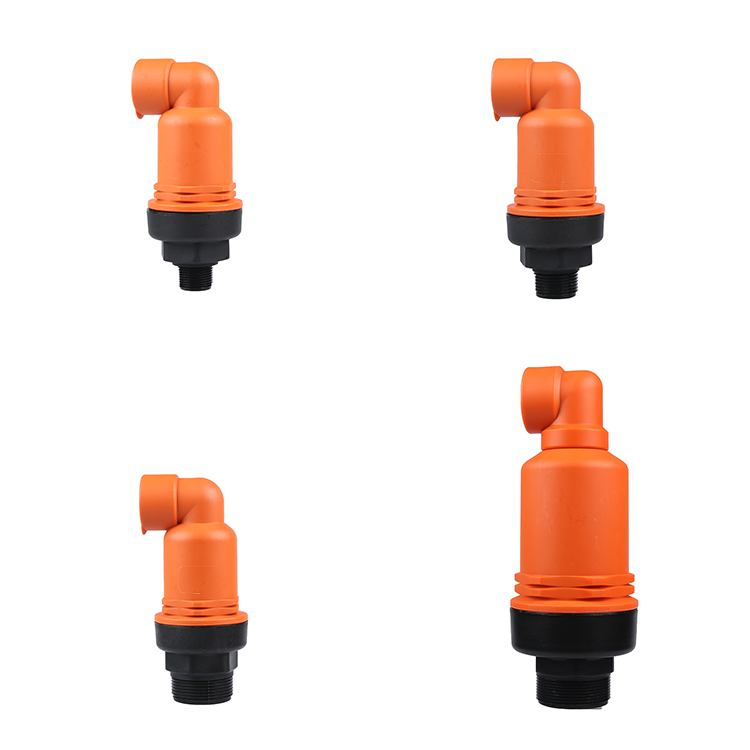

Available Sizes: 3/4”, 1”, 1.5”, and 2”
Connection Type: BSP/NPT male thread

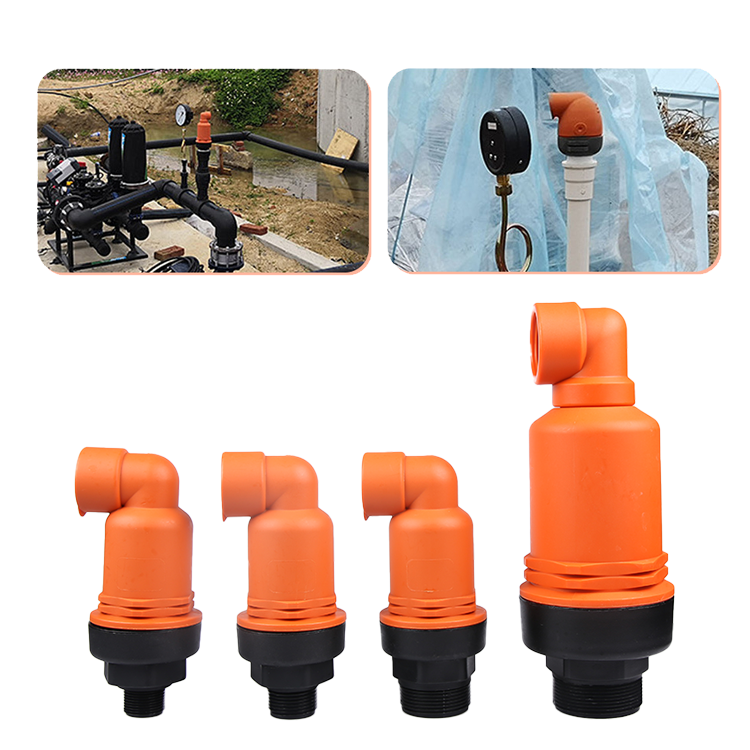

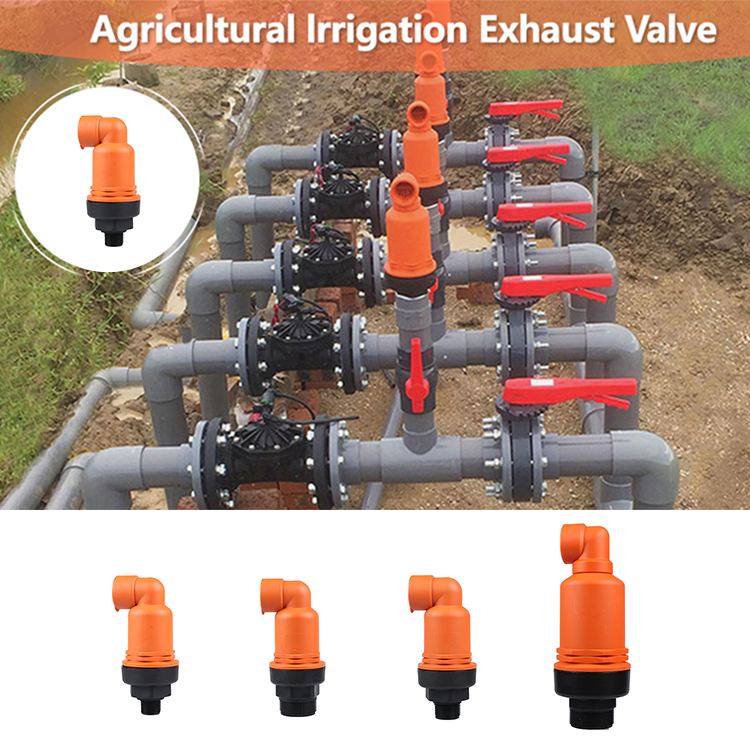

Recommended Installation: Vertical position at system high points, filter outlets, or near valve assemblies.

PRODUCT SPECIFICATIONS

Model	Size	Height	Thread Type	Air Release (m³/h)	Vacuum Intake (m³/h)	Working Pressure	Material

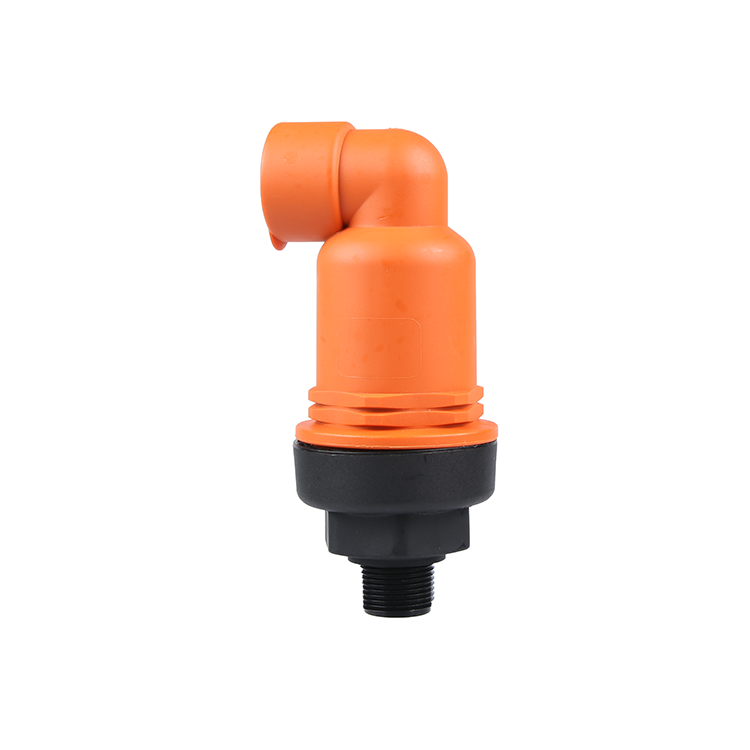

RL-VP75	3/4"	170 mm	BSP/NPT Male 25 mm	0–280	-280–0	0.3–15 bar	PP Plastic

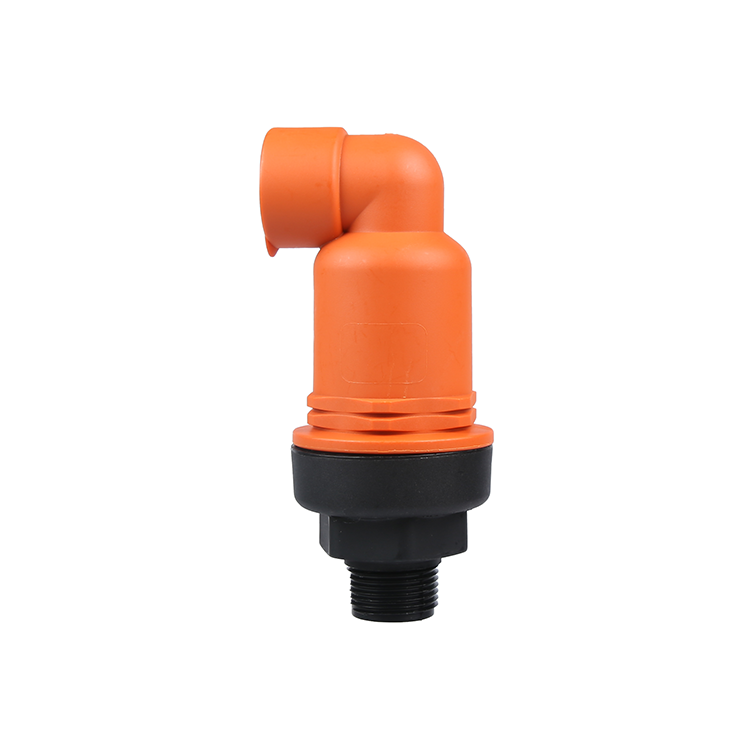

RL-VP100	1"	172 mm	BSP/NPT Male 32 mm

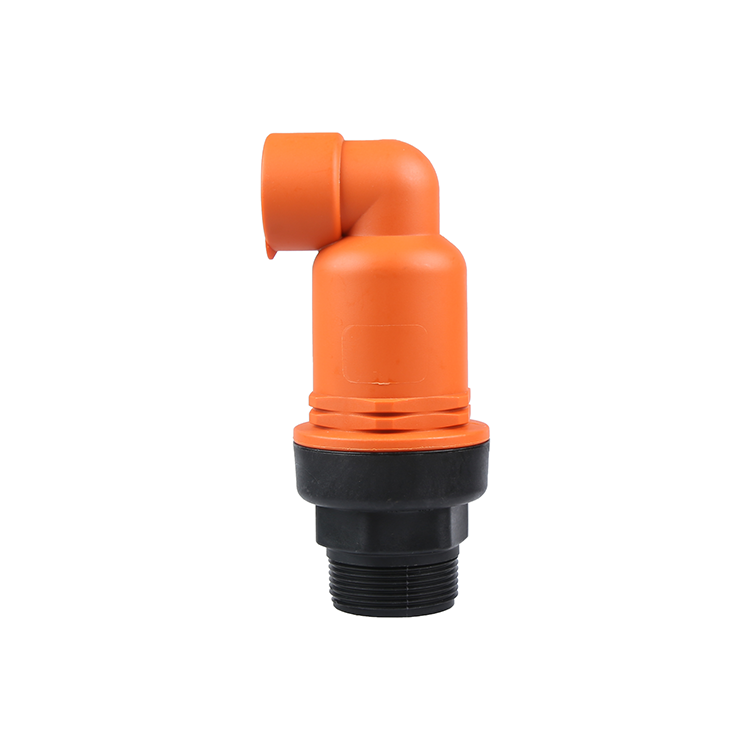

RL-VP150	1.5"	172 mm	BSP/NPT Male 50 mm

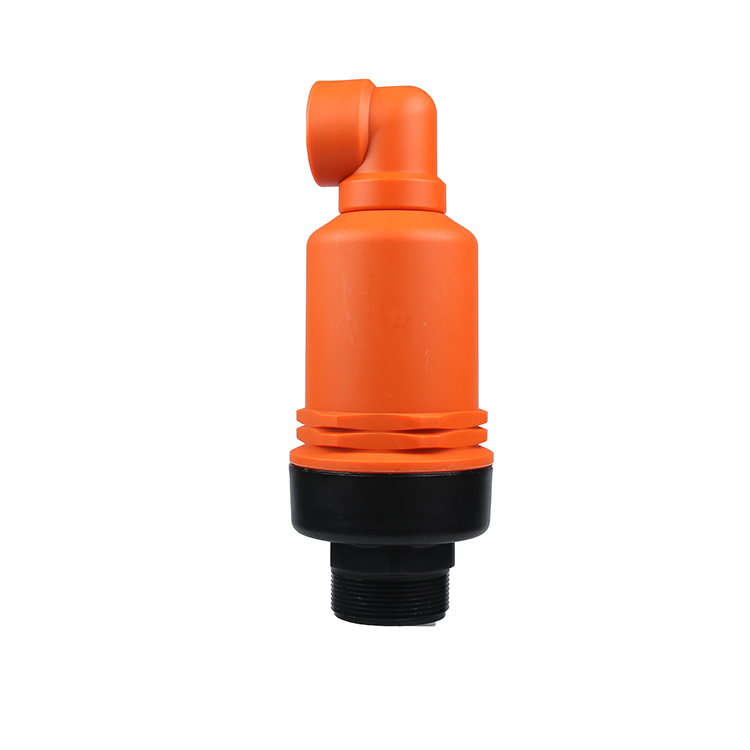

RL-VP200	2"	270 mm	BSP/NPT Male 63 mm	0–360	-360–0
