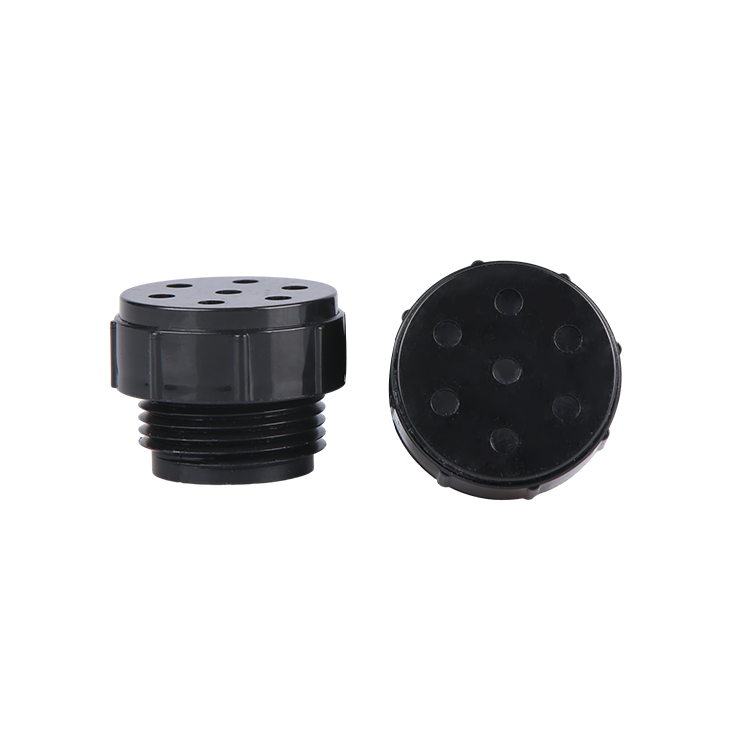

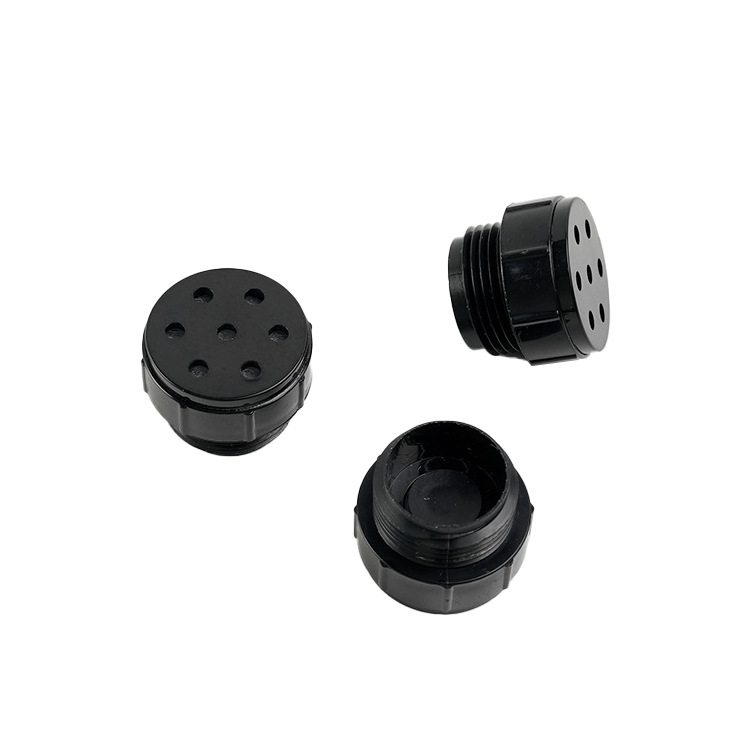

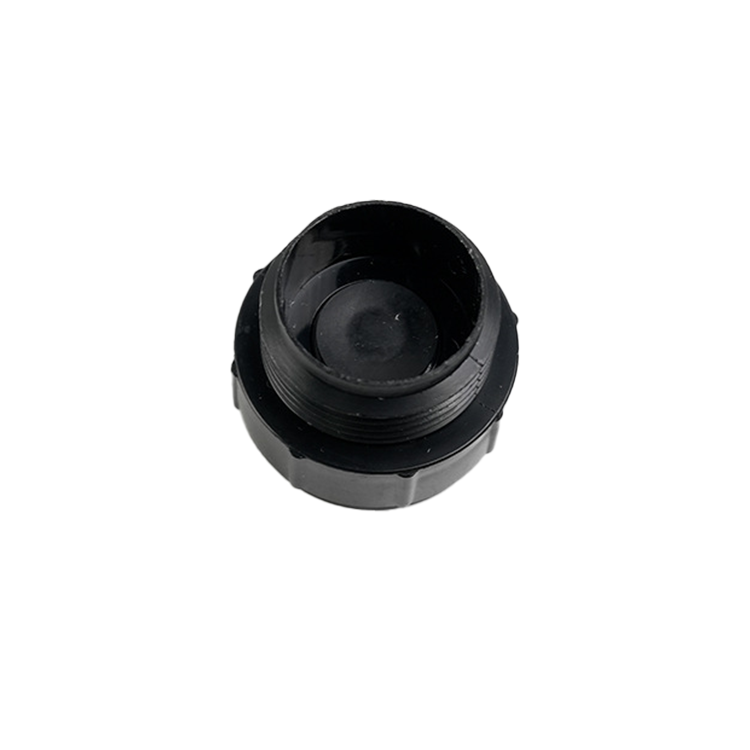

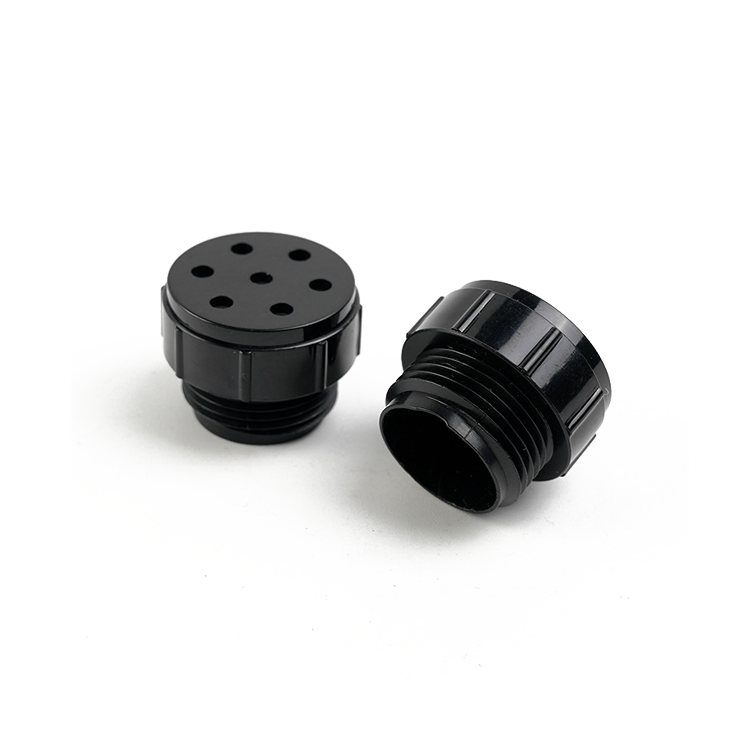

Auto Drain Valve
PRODUCT DESCRIPTION
RAIN LING Auto Drain Valve Series (VX75) is engineered to protect irrigation systems by automatically draining water from pipes when pressure falls below a safe threshold.
Installed at the lowest points of a line or near the sprinklers, this valve helps prevent water accumulation that can lead to pipe damage or freezing issues.
Its compact structure and durable materials make it suitable for both residential and commercial irrigation networks. The valve operates automatically — no manual intervention required — offering consistent reliability and system efficiency.
PRODUCT SPECIFICATIONS
|
Item |
Description |
|
Model |
VX75 |
|
Connection Size |
1/2 in. MPT |
|
Maximum Pressure |
8.5 bar |
|
Maximum Flow |
0.23 m³/h |
|
Average Opening Pressure (Vertical) |
0.2 bar |
|
Average Closing Pressure (Vertical) |
0.4 bar |
|
Diameter |
3.0 cm |
|
Height |
2.5 cm |
|
Material |
Engineering Plastic |
|
Installation Position |
Vertical (at pipe low points) |
