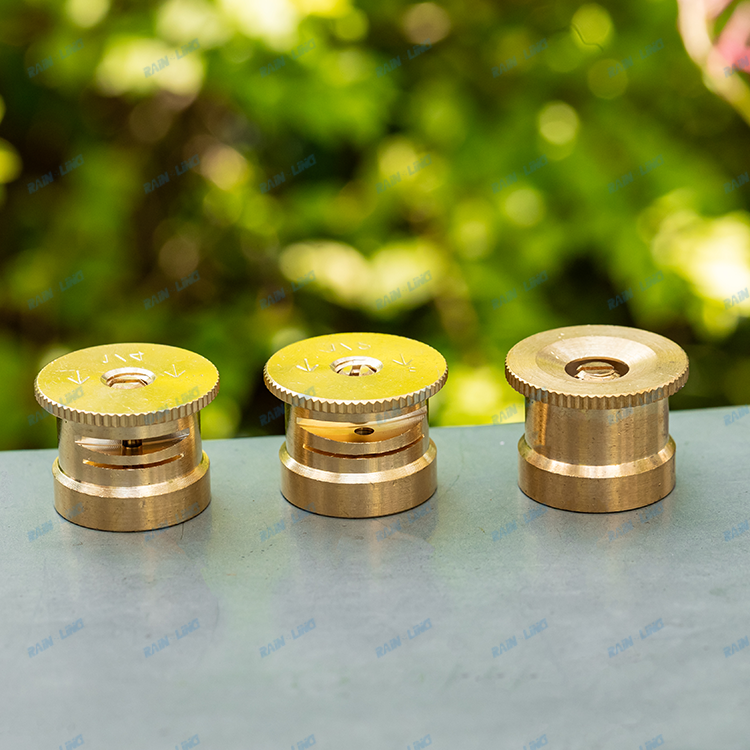

Brass Spray Nozzles

● Available in 90°, 180°, and 360° spray patterns for precise irrigation targeting

● Solid brass construction provides excellent corrosion resistance and extended lifespan

● Delivers uniform water distribution with a consistent spray radius of 3.2-4.5 meters

● Designed for low-flow operation and direct connection to sprinklers

● Universal thread compatibility with standard pop-up spray bodies

● Backed by a 2-year warranty

product details

PRODUCT DESCRIPTION

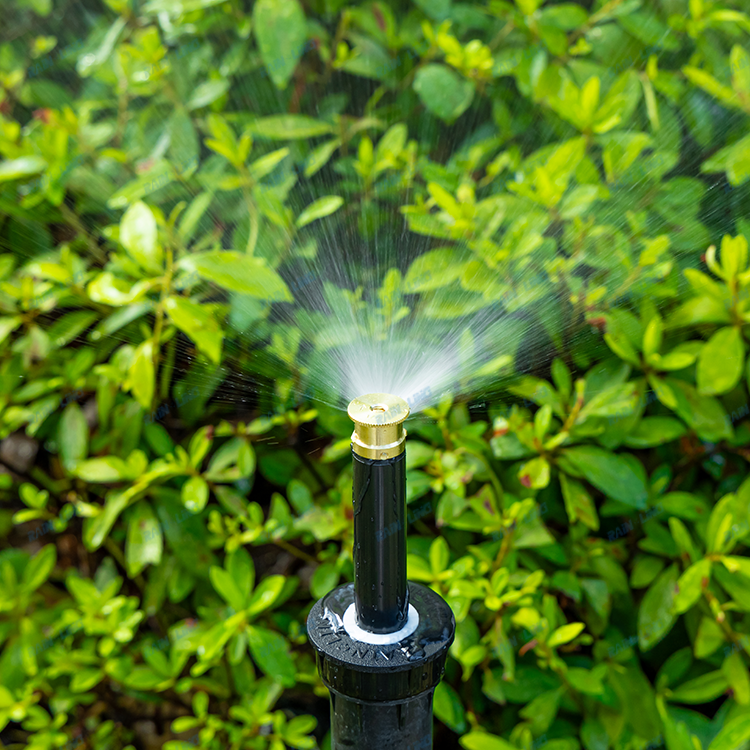

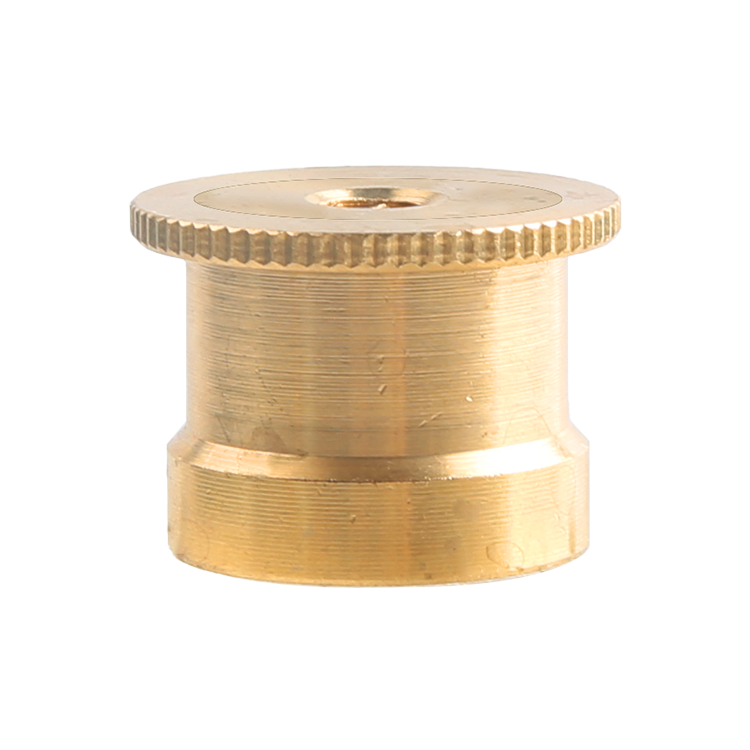

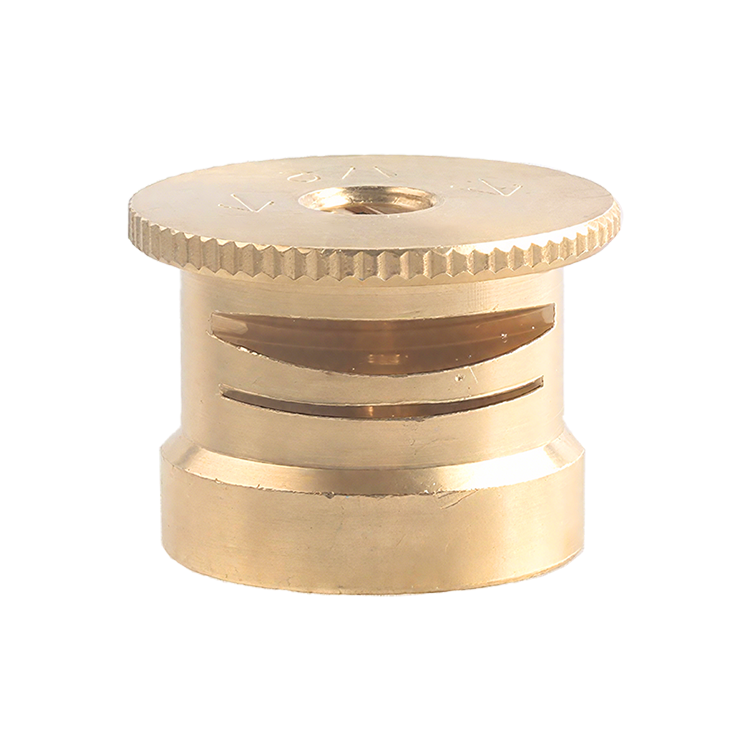

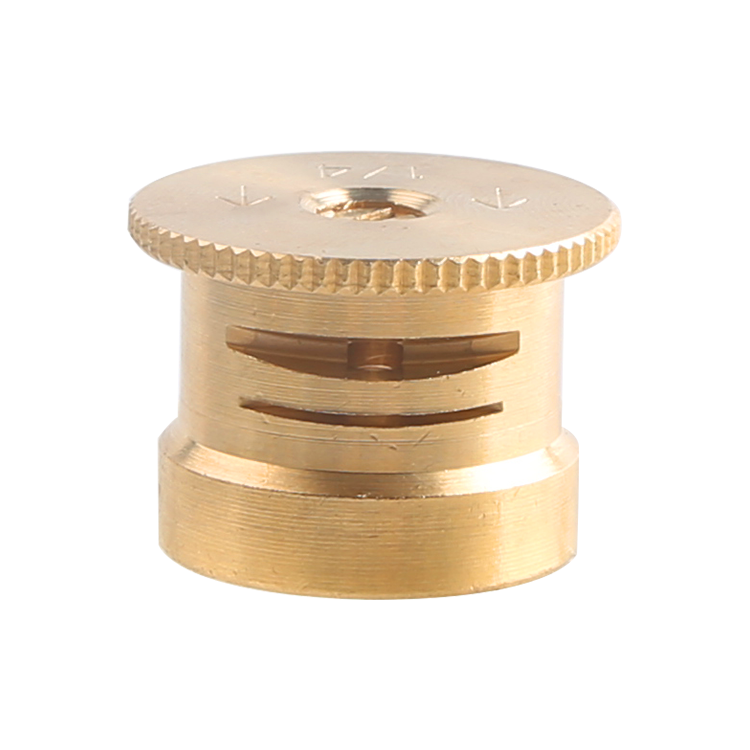

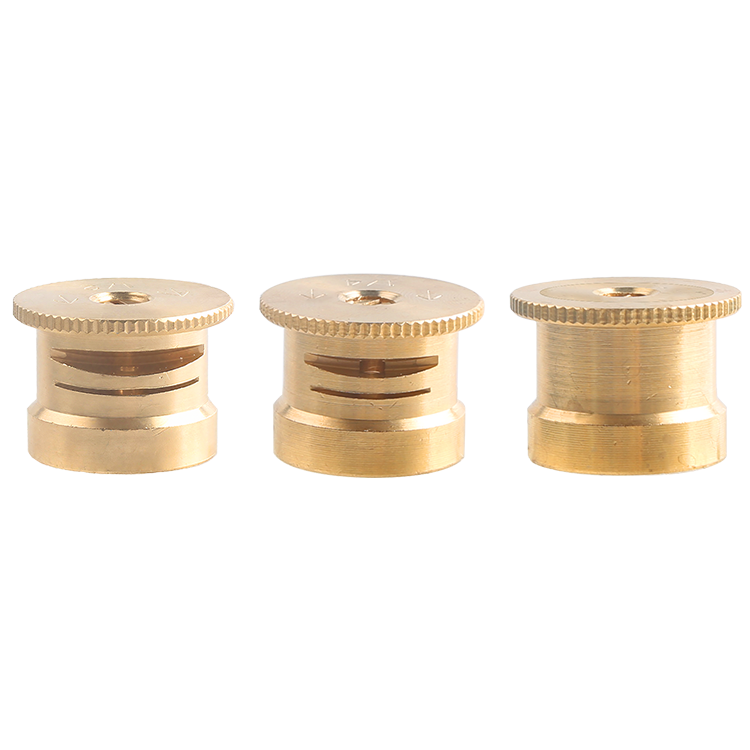

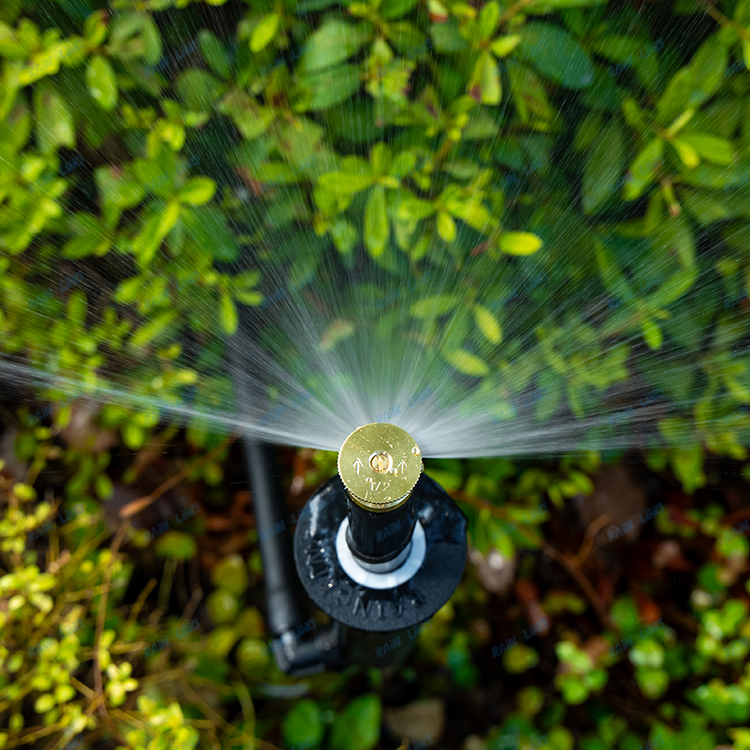

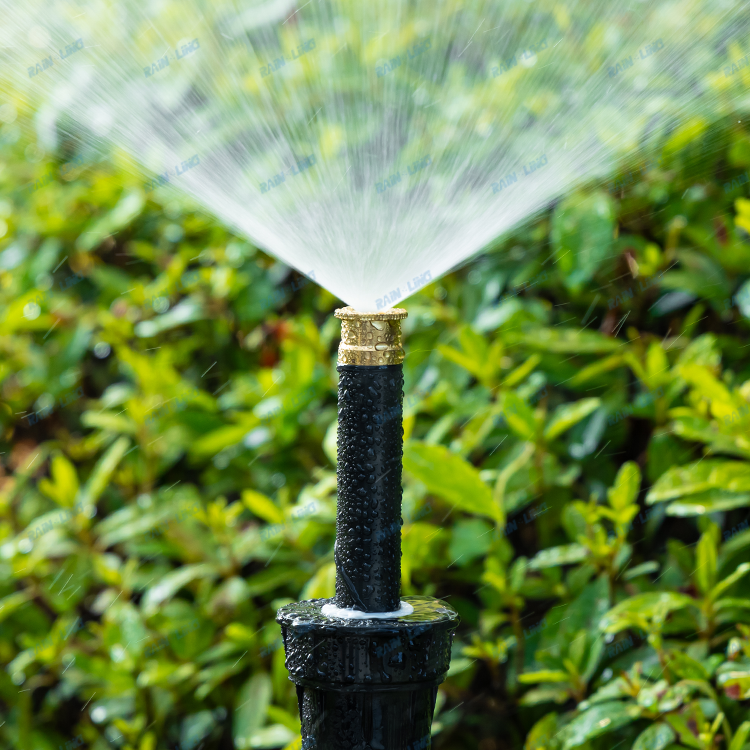

The RAINLING Brass Spray Nozzles deliver precision irrigation through engineered performance. Featuring three fixed spray patterns - 90°, 180°, and 360° - these nozzles adapt to various landscape configurations from corner beds to circular lawns. The hydraulically optimized internal design ensures even water distribution across the entire 3.2-4.5 meter coverage area, eliminating dry spots while conserving water through efficient application.

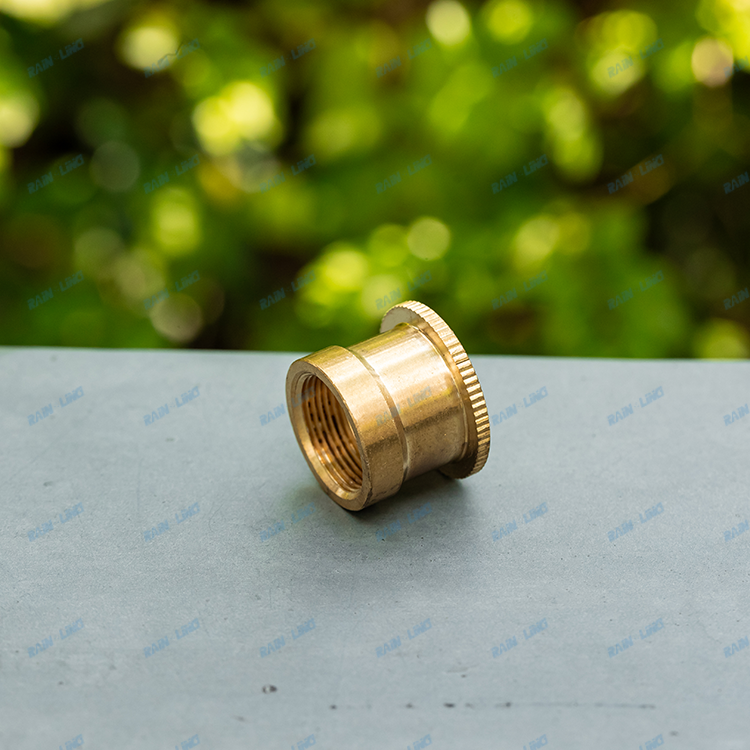

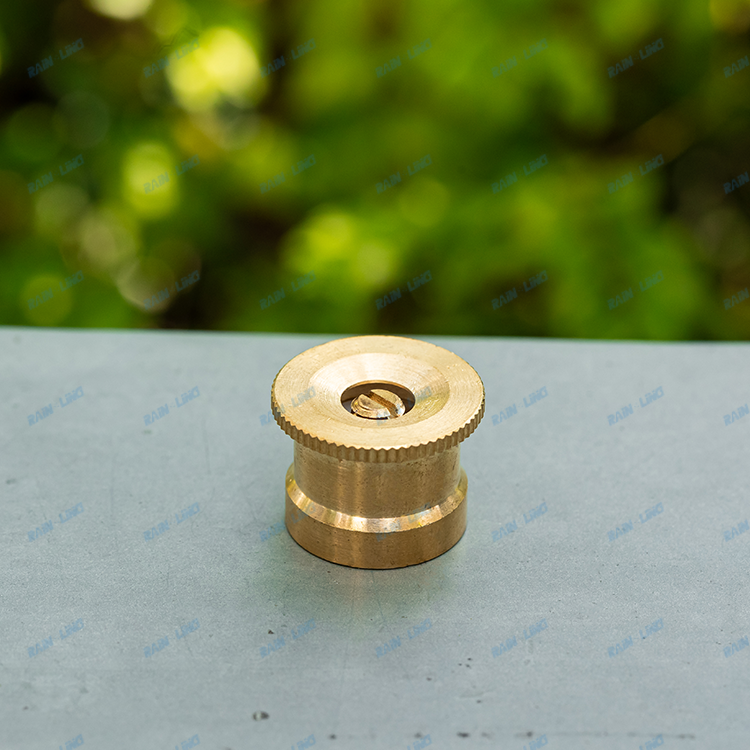

Crafted from premium brass, these nozzles demonstrate superior resistance to corrosion and wear, maintaining reliable performance in challenging water conditions and outdoor environments. The compact design enables direct threading onto sprinklers without additional adapters, simplifying installation and maintenance. With universal compatibility across industry-standard pop-up spray bodies, these nozzles serve as ideal upgrades for residential gardens, commercial landscapes, and municipal green spaces. RAINLING supports these durable brass nozzles with a 2-year warranty, offering professionals and homeowners a trusted solution for long-term irrigation efficiency.

PRODUCT SPECIFICATIONS

PRODUCT	PRESSURE(Bar)	RANGE(m)	FLOW(m³/h)
90° Brass Spray Nozzle	1.5	3.2	0.15
	2.0	3.4	0.17
	2.5	3.6	0.19
	3.0	3.8	0.24
	3.5	4.0	0.25
180° Brass Spray Nozzle	1.5	3.0	0.19
	2.0	3.5	0.24
	2.5	3.7	0.30
	3.0	4.0	0.33
	3.5	4.1	0.34
360° Brass Spray Nozzle	1.5	3.5	0.67
	2.0	4.1	0.78
	2.5	4.2	0.82
	3.0	4.5	0.93
	3.5	4.5	1.00
