Decoder Controller

● Supports up to 100 stations with HSBUS communication (maximum distance 3 km)

● Available in AC and DC versions for flexible field applications

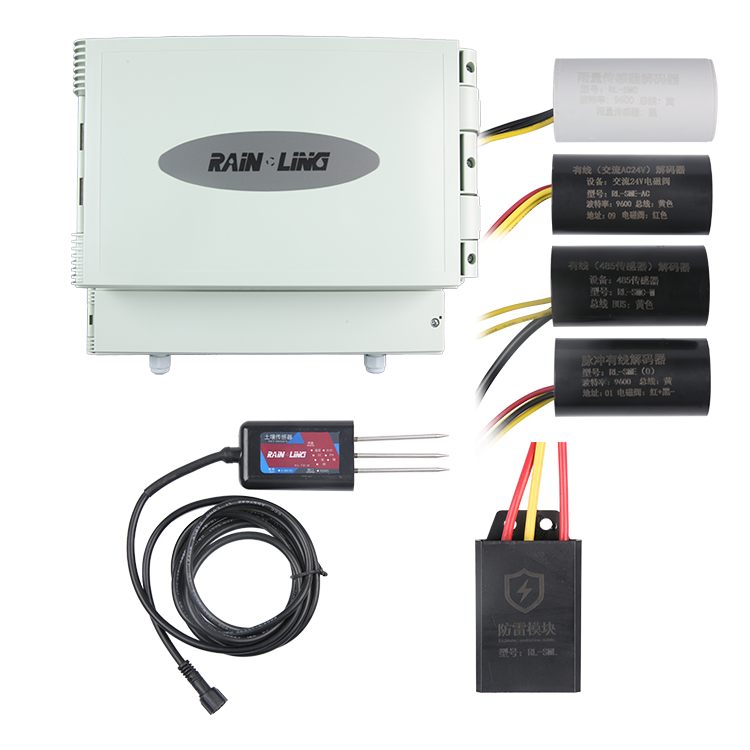

● Compatible with soil moisture, rain, flow, lightning protection, and solenoid valve decoders

● Designed for large-scale agricultural, garden, and park irrigation systems

product details

PRODUCT DESCRIPTION

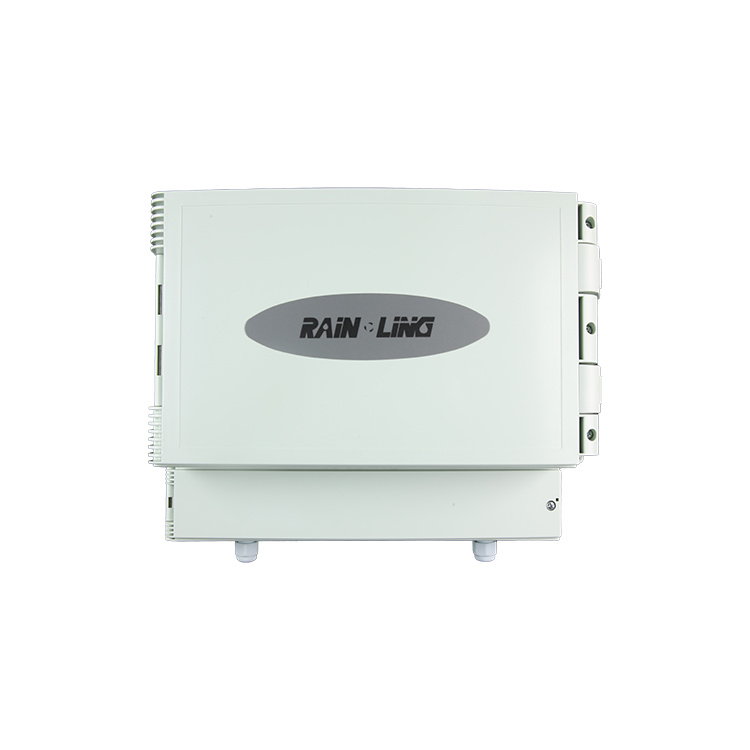

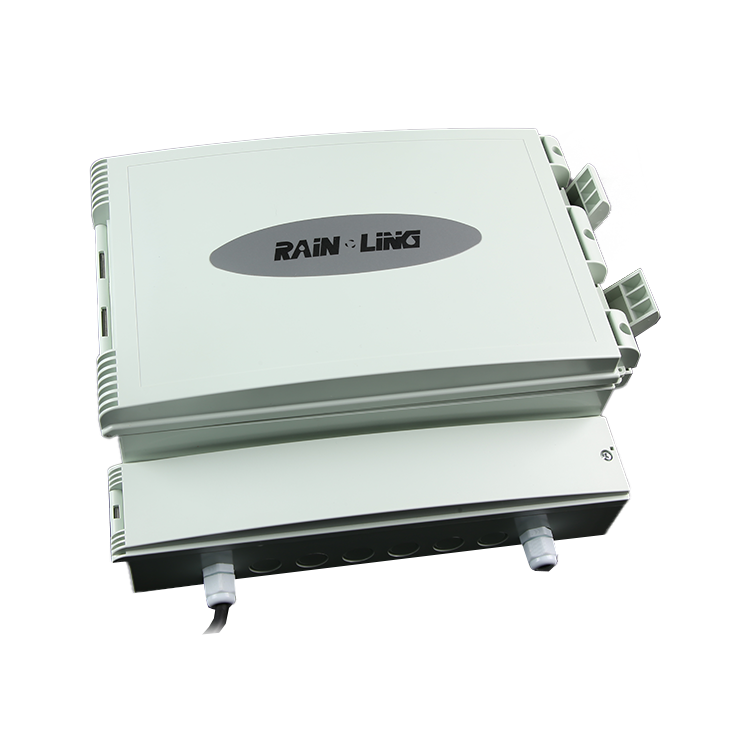

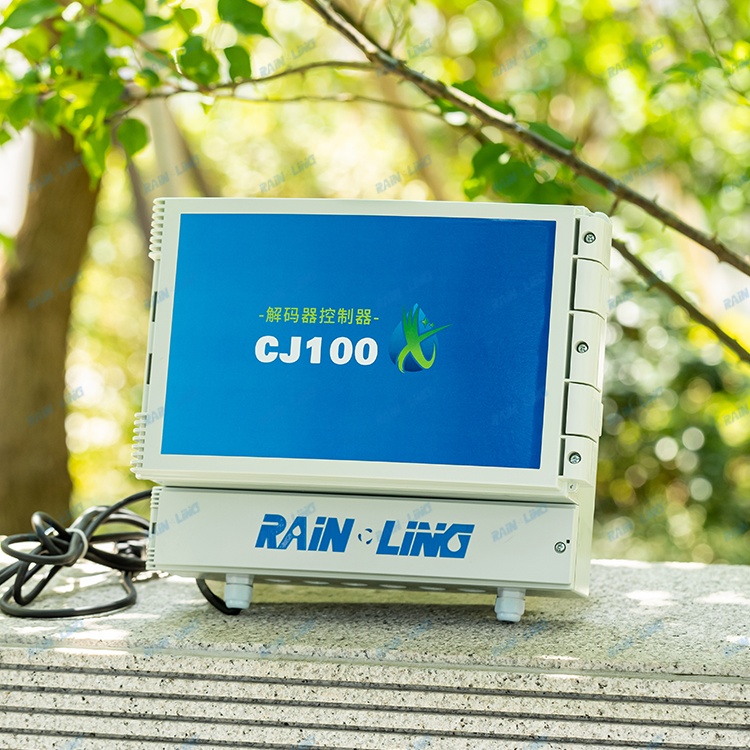

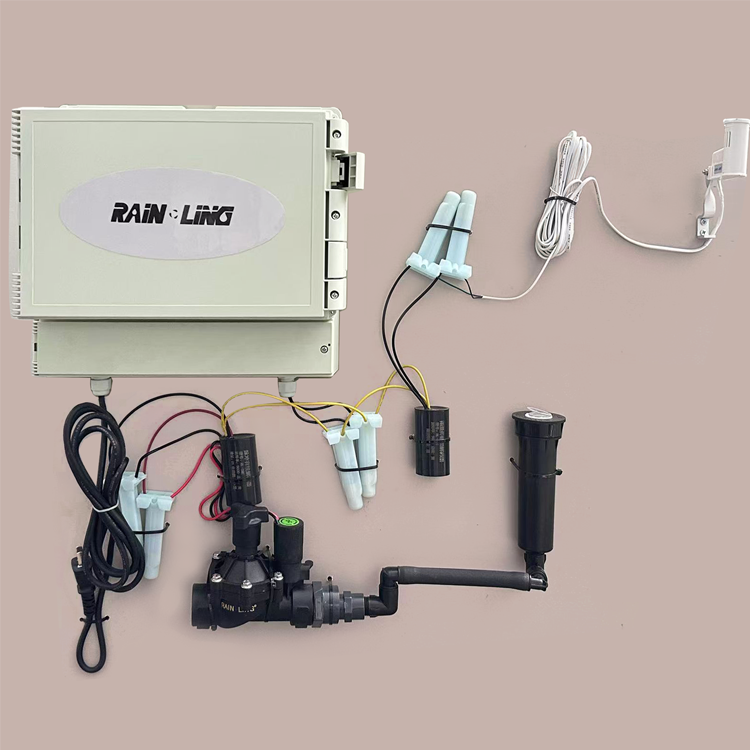

The Decoder Controller is an intelligent irrigation management system designed for agriculture, gardens, and public parks. Supporting up to 100 stations, it adopts HSBUS communication for stable long-distance control up to 3 km. Available in AC and DC versions, the controller works with soil moisture, rain, flow, and solenoid valve decoders (24V AC / 9V DC), offering flexible and reliable operation.

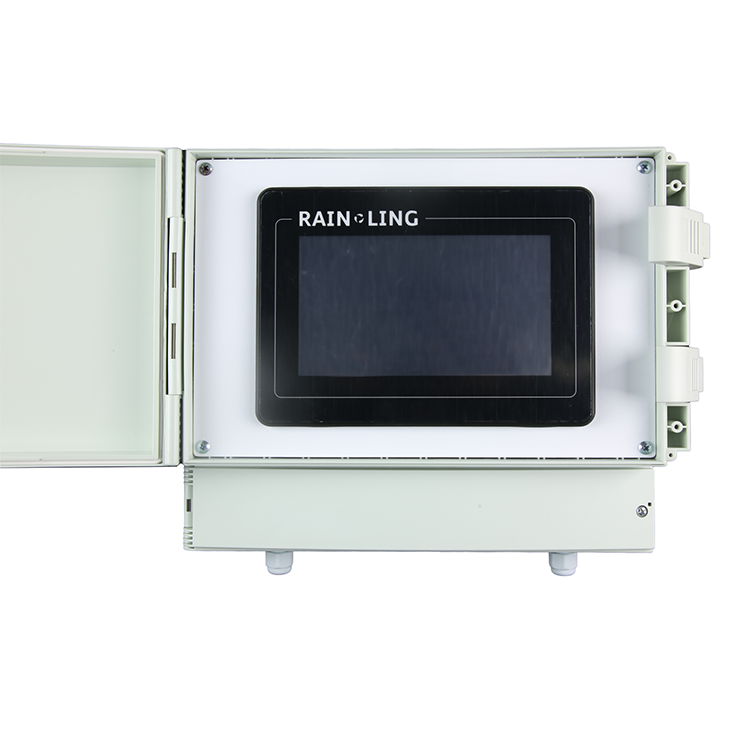

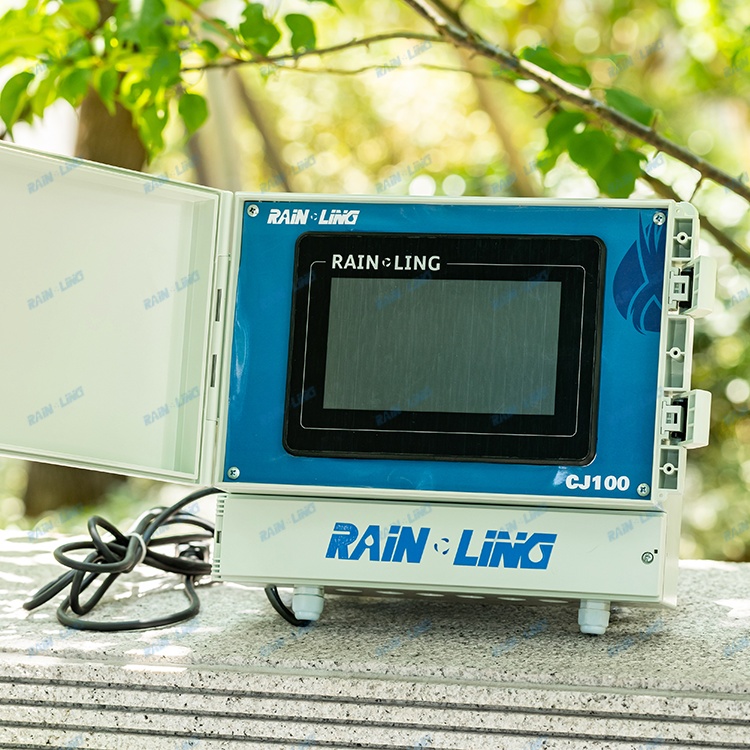

Equipped with an LCD touch screen and mobile app control, the CJ100 allows easy setup, independent zone programming, and real-time monitoring. Its IP65 waterproof ABS enclosure and double-door protection ensure safe outdoor use. With modular design and integrated HSBUS and transformer, it provides a smart, scalable, and efficient irrigation solution.

PRODUCT SPECIFICATIONS

Product Code	RL-CJ100
Control stations	100 stations
Material	ABS
Waterproof grade	IP65
Communication distance	3KM
Mobile phone control	Support
Net Weight	3.5kg/pc
Gross Weight	4.7kg/pc
Inner Packing Size	3823.531.5cm
