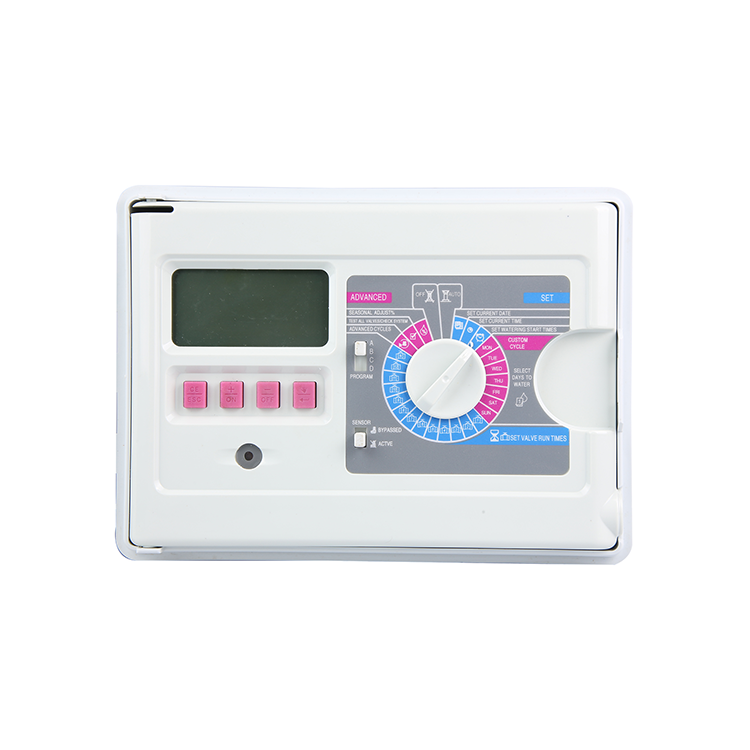

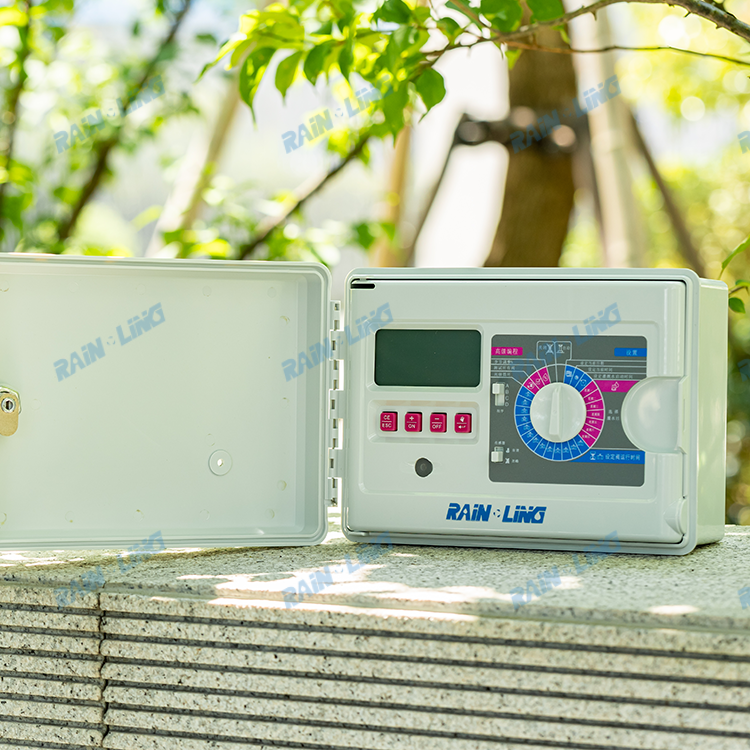

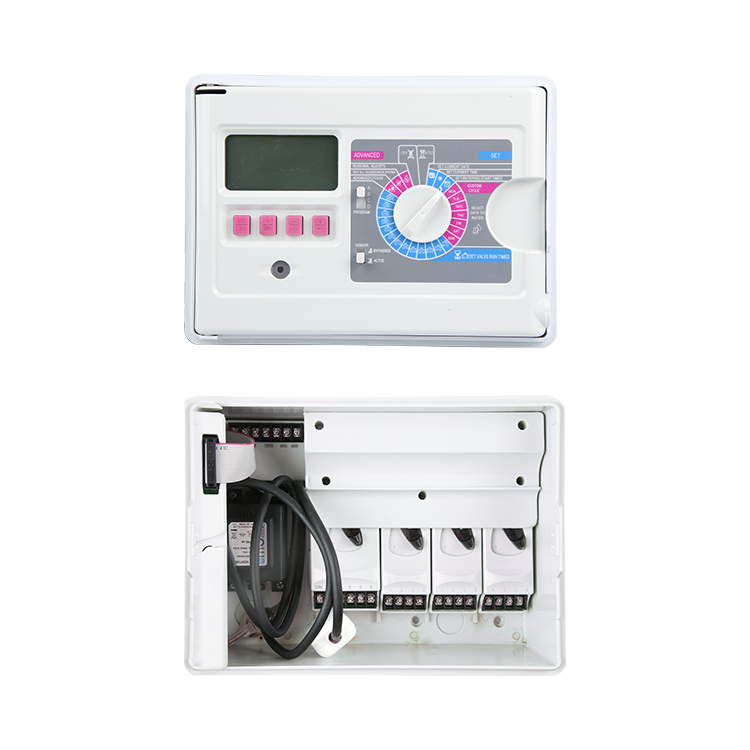

Modular Station Irrigation Controllers
PRODUCT DESCRIPTION

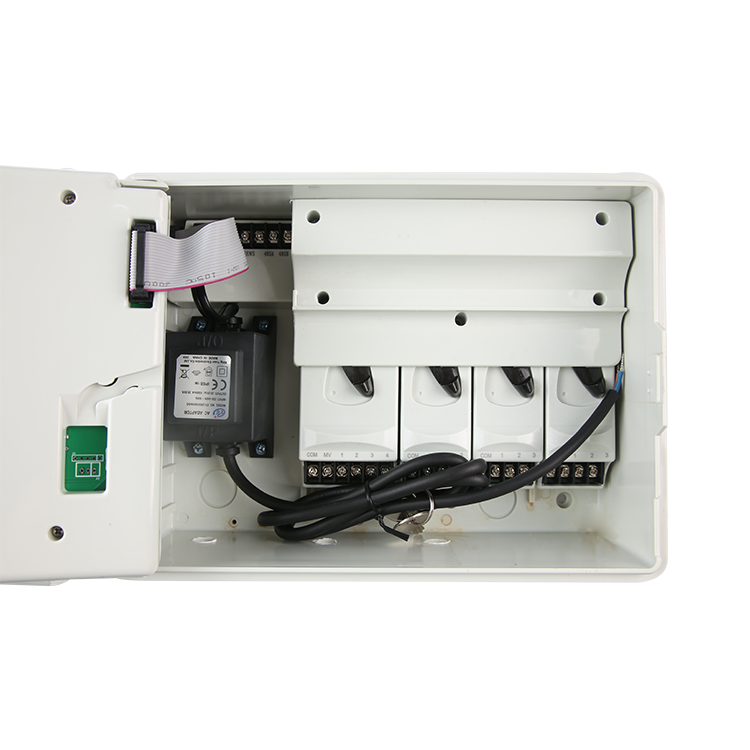

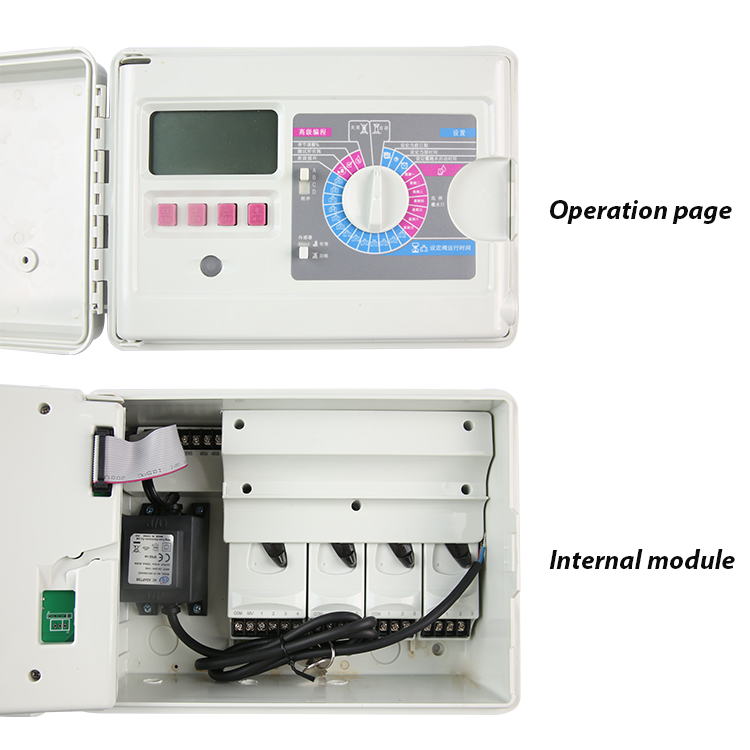

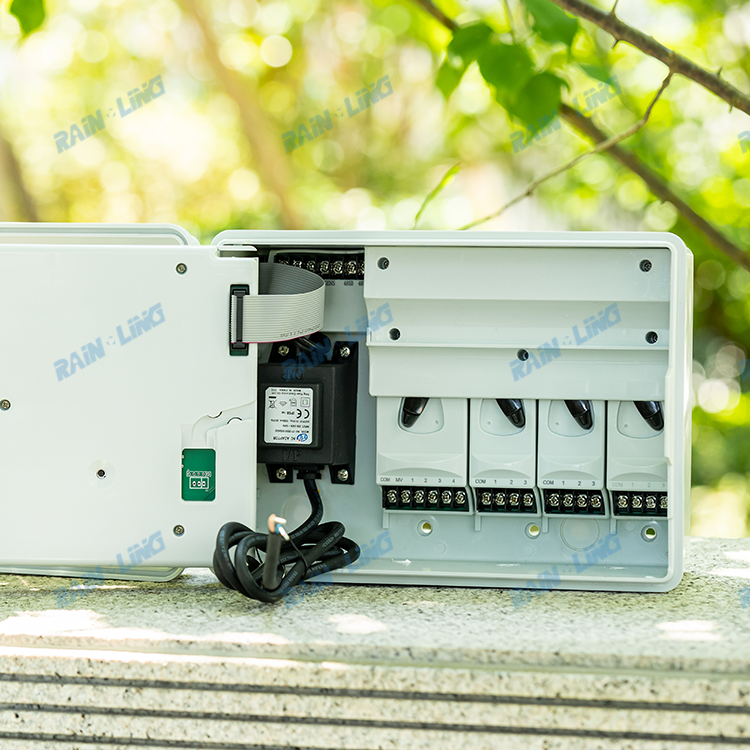

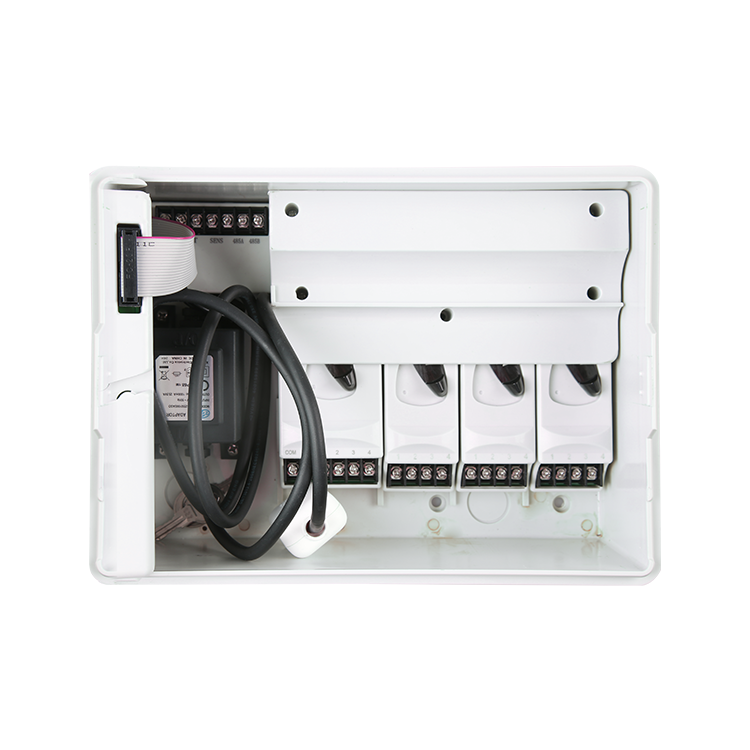

The Modular Station Irrigation Controllers are designed to provide professional-grade irrigation scheduling for both residential landscapes and commercial green spaces. Available in two versions, the 13-station model (expandable as 4, 7, 10, or 13 stations) and the 16-station model (expandable as 4, 8, 12, or 16 stations), both start from a 4-station base configuration with one master valve/pump relay. Built for versatile use, the controllers support AC220V/50Hz input and deliver AC24V/0.8A output, housed within a waterproof enclosure for reliable outdoor installation.
Equipped with 4 fully independent programs and up to 8 start times per program, the controllers allow precise scheduling with irrigation run times from 1 minute to 12 hours 59 minutes. Flexible interval settings include weekly mode, odd/even days, and cycle day mode (1 to 30 days), ensuring customized water management. A rain sensor input with normally-closed switch type is supported, enabling automatic shutdown during rainfall. Additional features include pump and station linkage, seasonal adjustment from 10% to 200%, and rain sensor on/off functionality. With Wi-Fi module compatibility, users can achieve remote monitoring and control. Manufactured with automated production processes, these controllers deliver dependable performance at a competitive price, making them an ideal solution for efficient and intelligent irrigation systems.
PRODUCT SPECIFICATIONS
|
Product Code |
RL-CA13 |
RL-CA16 |
|
Control stations |
4,7,10,13 |
4,8,12,16 |
|
Operating input voltage |
AC 220V 50Hz |
AC 220V 50Hz |
|
Operating ouput voltage |
AC 24V 0.8A |
AC 24V 0.8A |
|
Control programming groups |
4 groups |
4 groups |
|
lrrigation duration |
1 minute to 12 hours 59 minutes perstation |
1 minute to 12 hours 59 minutes perstation |
|
lrrigation volume percentage adjustment |
adjustable from 10% to 200% |
adjustable from 10% to 200% |
|
Net Weight |
11.70kg |
12.00kg |
|
Gross Weight |
13.95kg |
14.25kg |
|
Packing Size |
43*32*37.5cm |
43*32*37.5cm |
|
Packing |
6PCS/CTN |
6PCS/CTN |
