Swing Joint

● Quick Height Adjustment: Align sprinklers easily with any surface, no digging or pipe cutting required.

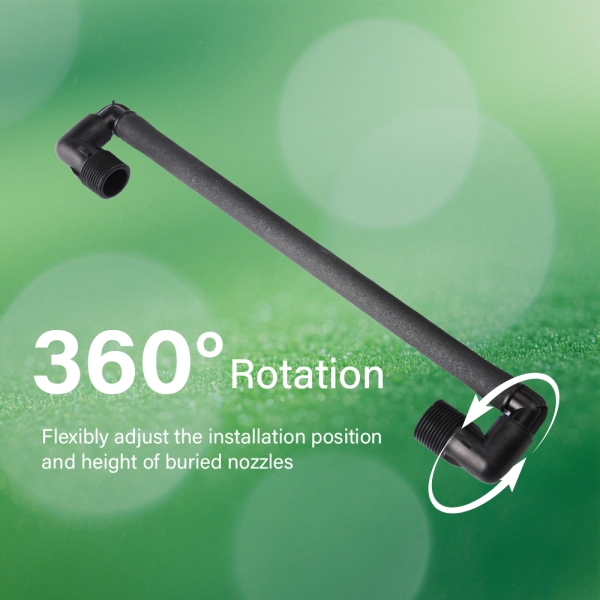

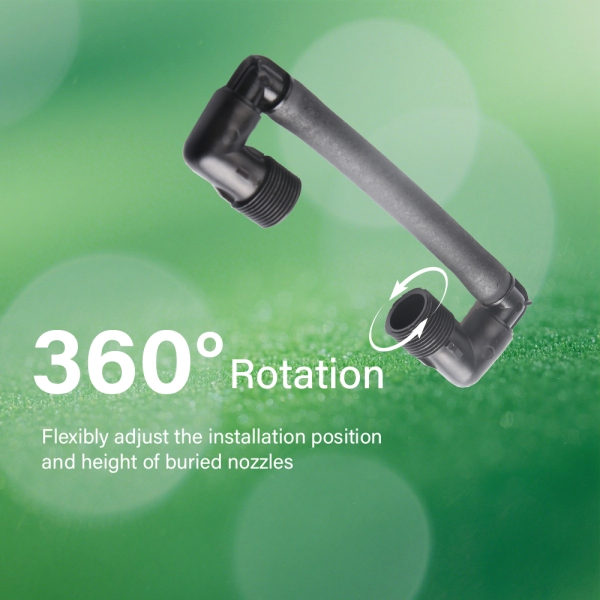

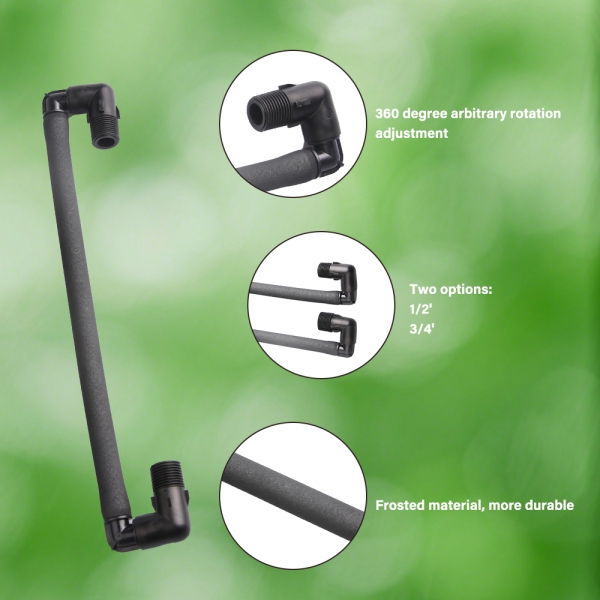

● Flexible Positioning: Swivel ells rotate for precise installation at any angle, even in tight spaces.

● Leak-Free & High Pressure: Airtight joints tested up to 10 bar (150 PSI) for reliable water flow.

● Durable Construction: Made of UV- and impact-resistant polyethylene for long-lasting performance.

● Universal Fit: Compatible with most pop-up, rotor, and gear sprinklers.

● Preassembled Design: Ready to install with no tools or sealants needed

product details

PRODUCT DESCRIPTION

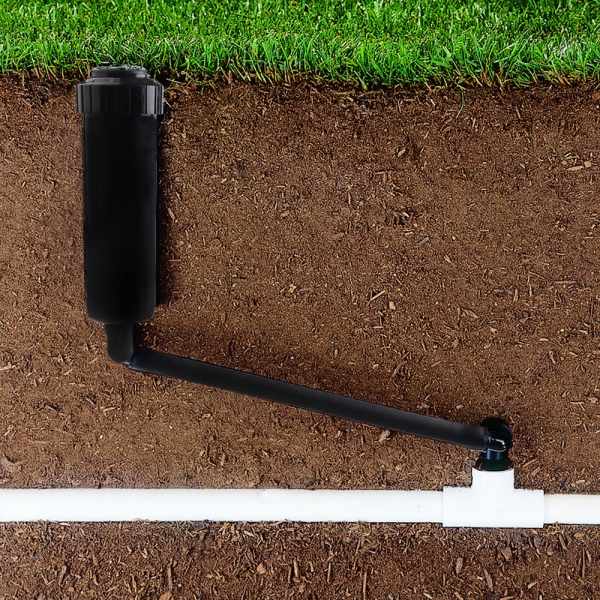

RAIN LING Swing Joint is a flexible irrigation connector designed to simplify sprinkler installation and maintenance while ensuring reliable water flow. It allows users to easily adjust sprinkler height and angle without disturbing buried pipes, making it a perfect solution for both new installations and retrofits.

Each joint features built-in swivel ells that rotate freely to accommodate any layout, even in tight or uneven areas. With a pressure rating of up to 10 bar (150 PSI), it maintains a leak-free seal and consistent performance across varied irrigation environments.

Constructed from UV-stabilized, impact-resistant polyethylene, this swing joint withstands harsh outdoor conditions and long-term field use. Its preassembled design makes installation straightforward — simply connect, adjust, and set.

Compatible with most pop-up, rotor, and gear-driven sprinklers, it provides a cost-effective, durable, and flexible solution for professional landscapers, contractors, and irrigation system designers.

PRODUCT SPECIFICATIONS

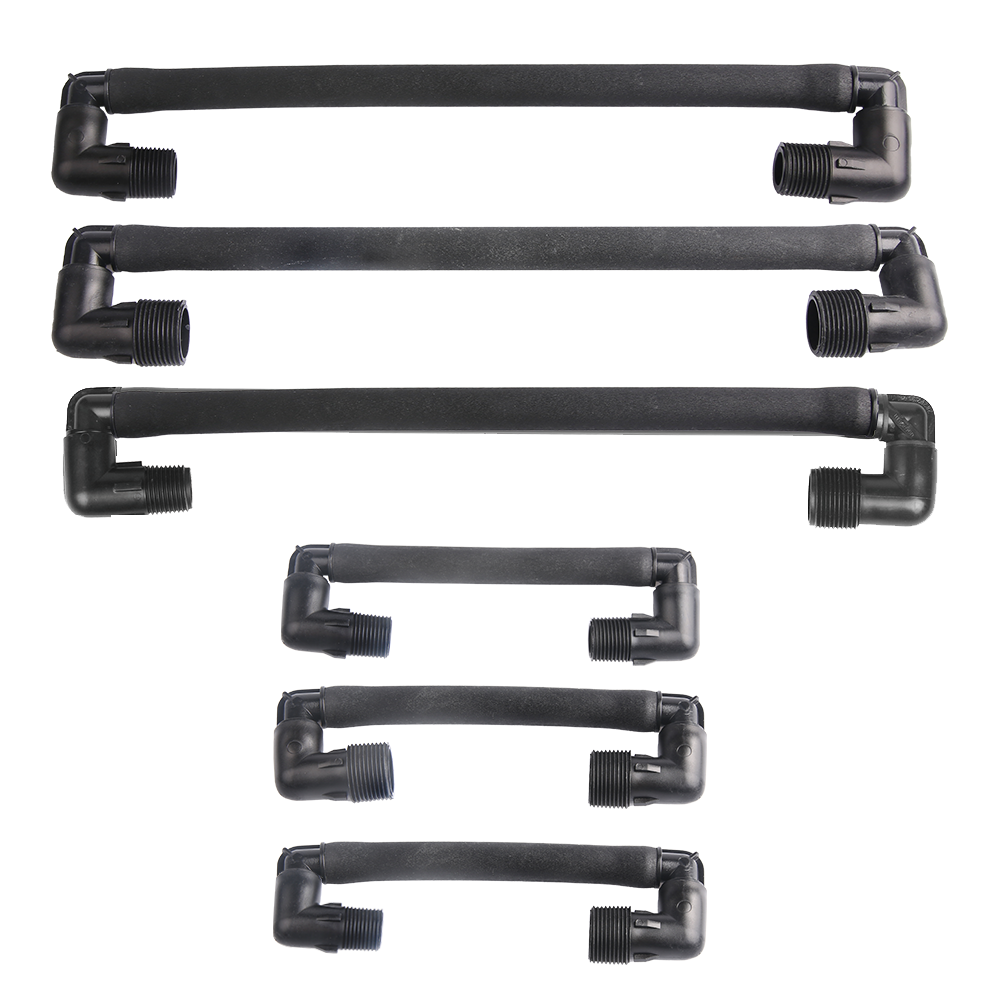

Model	Connection Size	Length	Max Pressure	Warranty

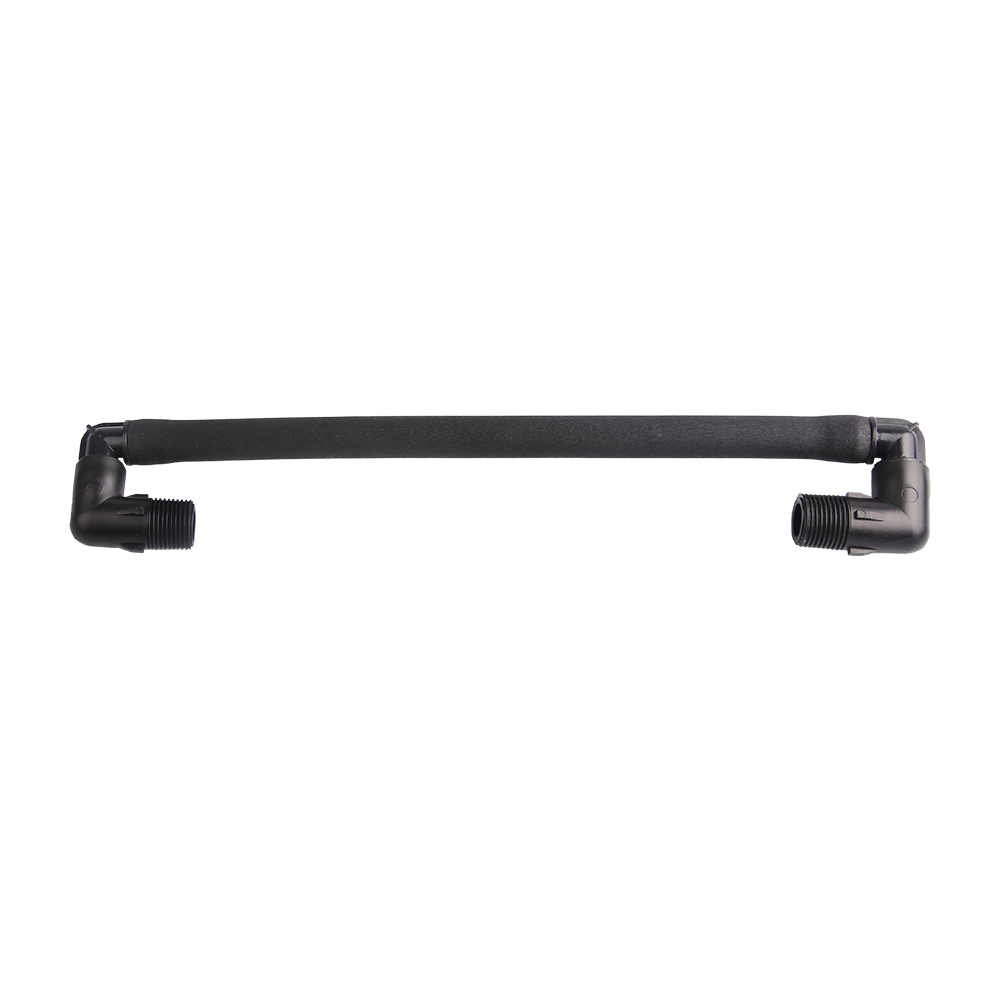

JS20	1/2" male threaded	12 in.	≤10 bar	3 years

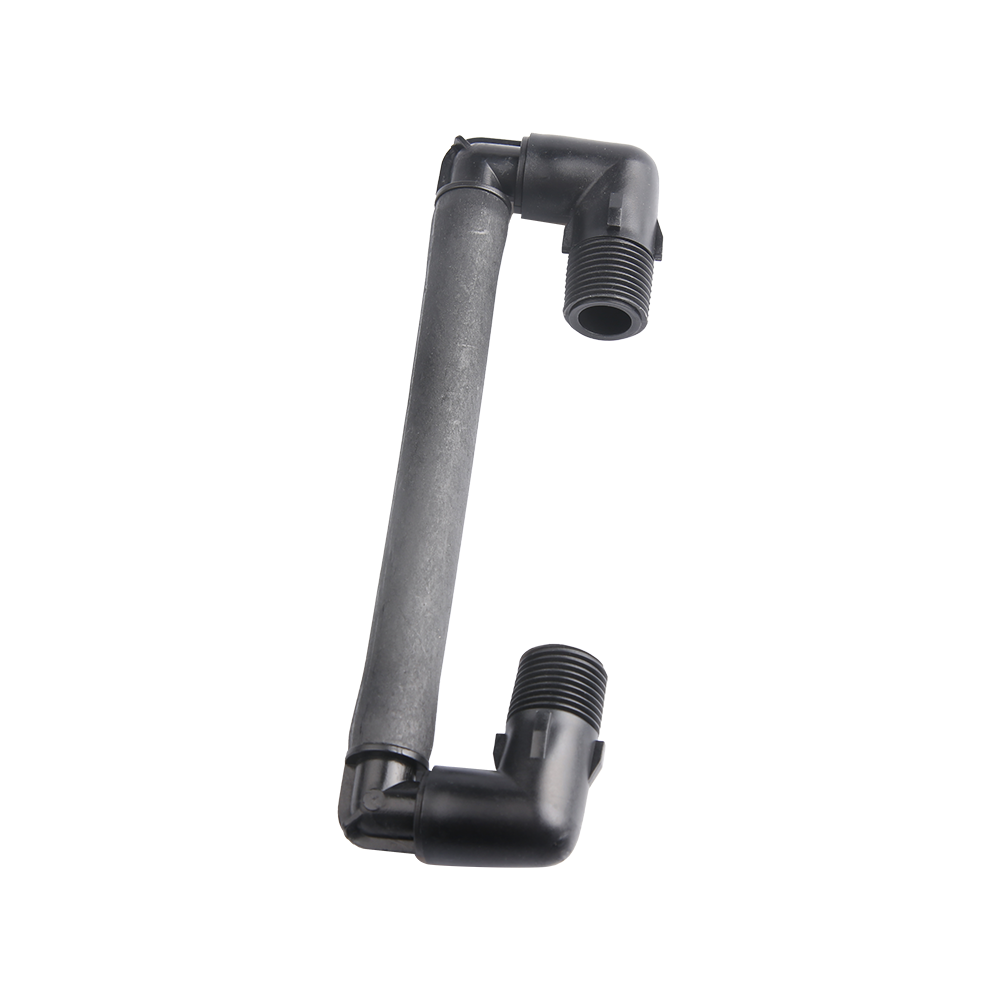

JS20H	1/2" male threaded	6 in.	≤10 bar	3 years

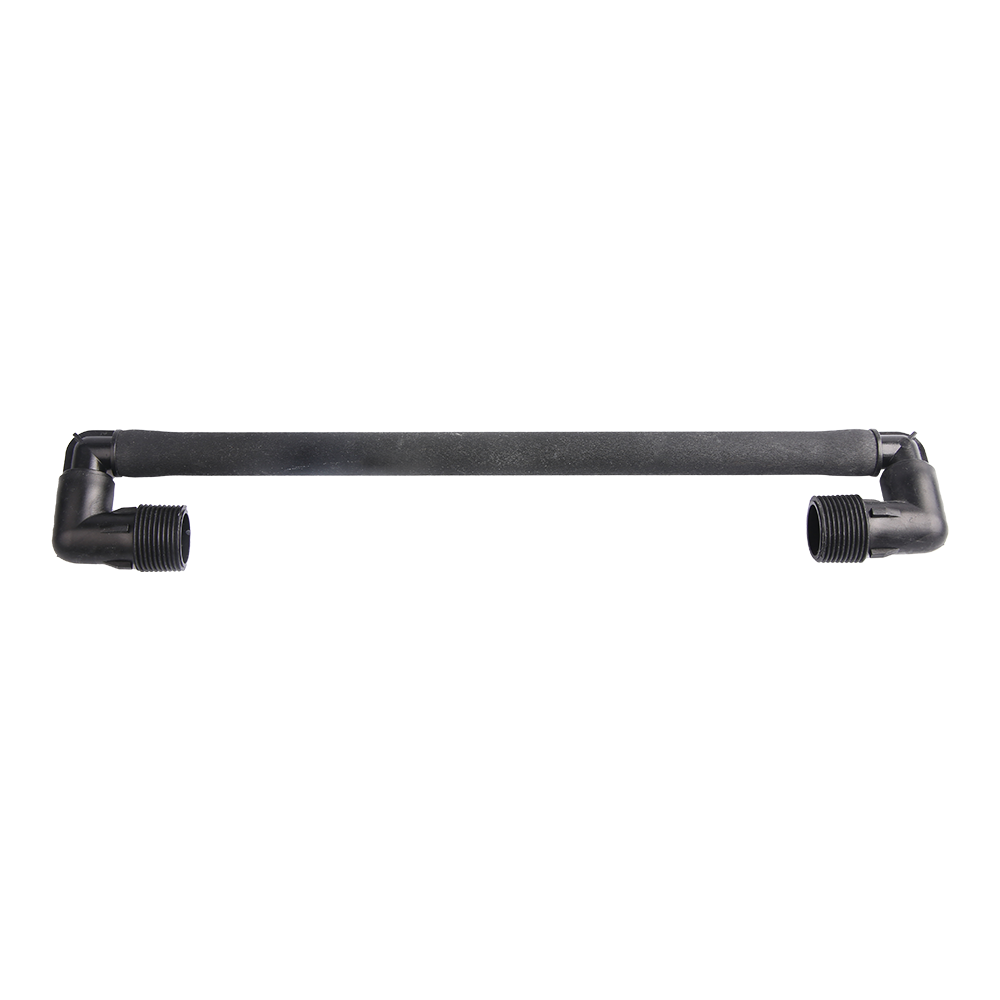

JS25	3/4" male threaded	12 in.	≤10 bar	3 years

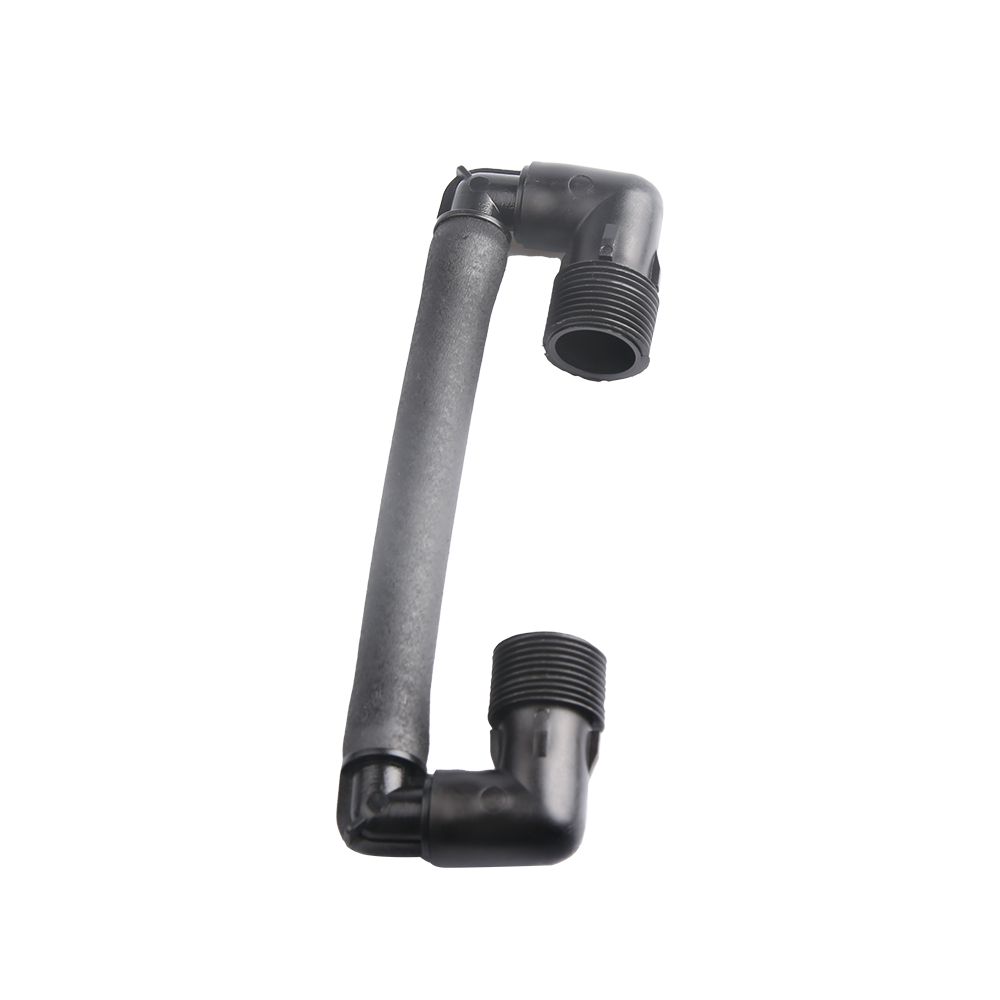

JS25HP	3/4" male threaded	6 in.	≤10 bar	3 years

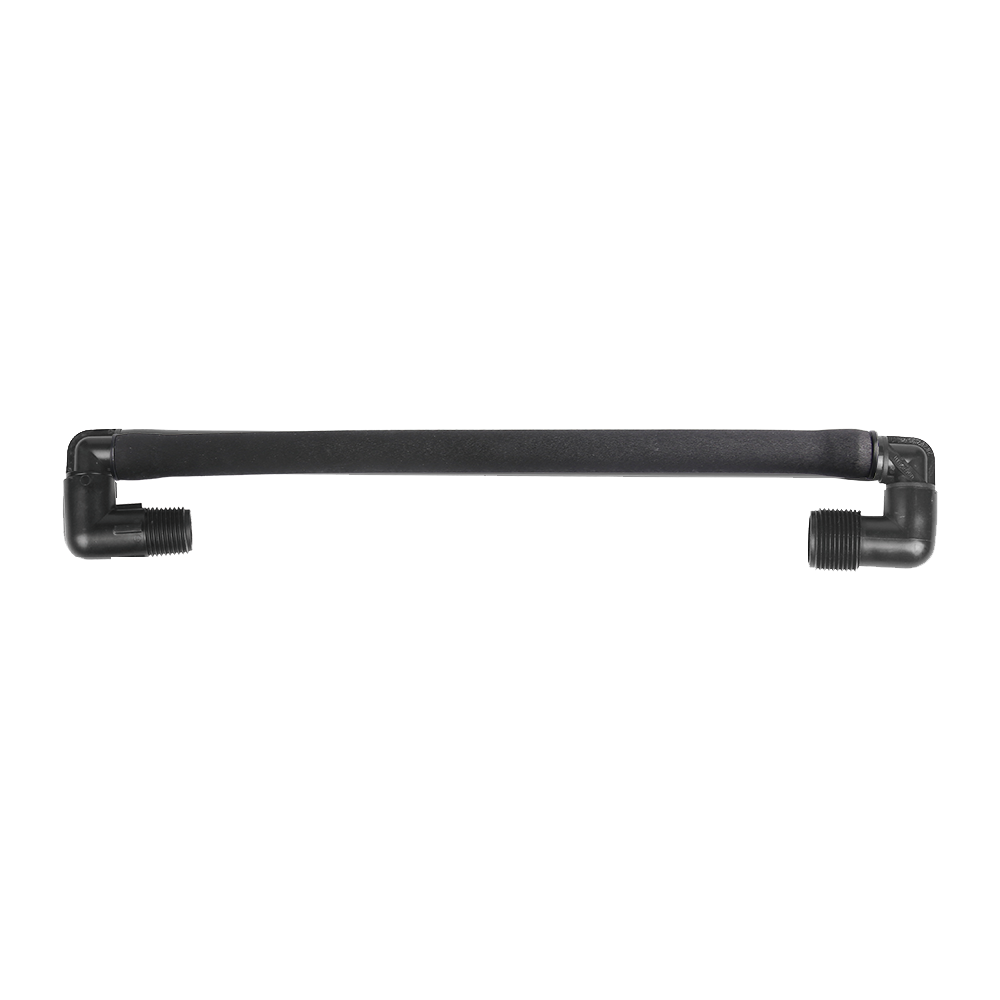

JS2025	1/2" × 3/4" male threaded	12 in.	≤10 bar	3 years

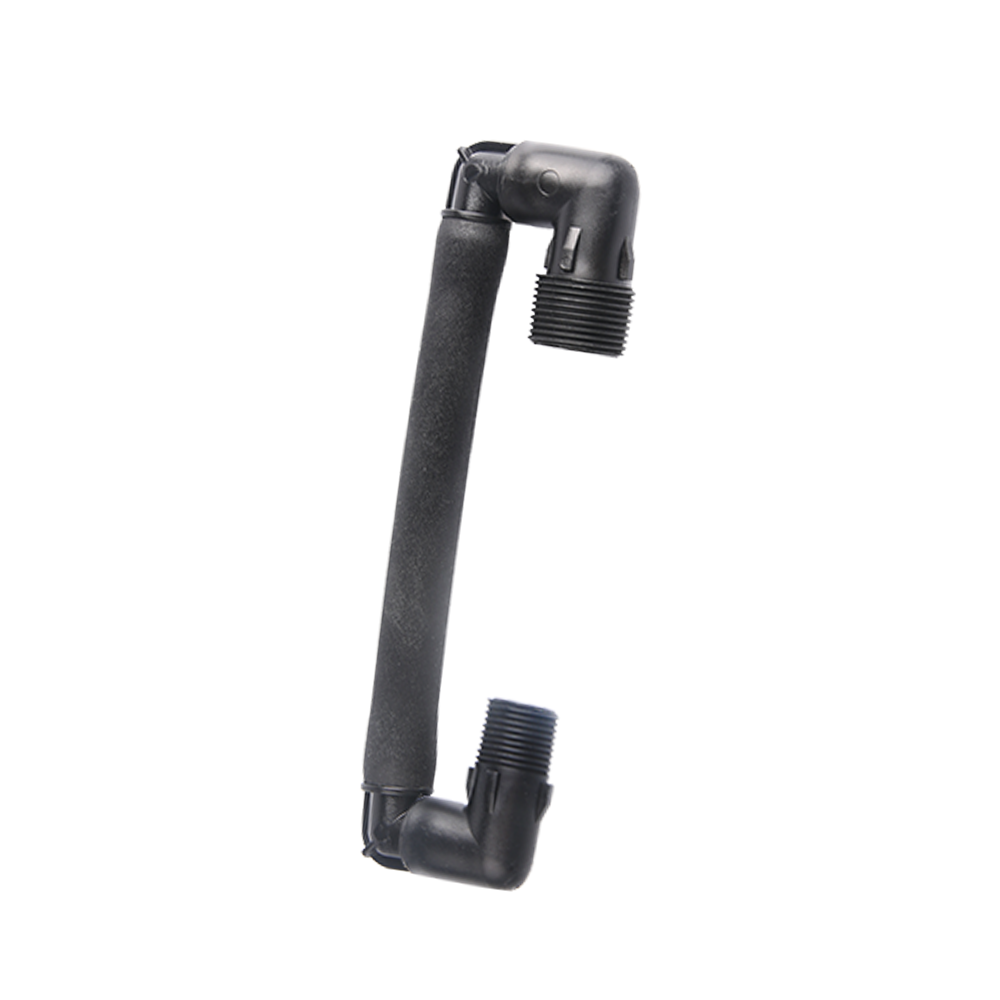

JS2025HP	1/2" × 3/4" male threaded	6 in.	≤10 bar	3 years
